Quick answer: most laptop keys sit on a scissor hinge, two small plastic frames that cross in an X and clip into hooks on the keyboard base. Some Apple laptops from roughly 2015 to 2019 used a thinner butterfly mechanism. Long keys (space bar, Shift, Enter, Backspace) add a metal stabilizer bar. Hinges differ between keyboard designs in size, shape and clip positions, so a replacement must match your keyboard, not just your laptop brand.
When a key pops off, the keycap is rarely the problem. It's usually the hinge underneath that has come unclipped or snapped. Knowing which type you have tells you how to refit it and what to order.
The three mechanisms
| Type | What it looks like | Where you find it |
|---|---|---|
| Scissor | Two interlocking plastic frames forming an X, with a rubber dome in the centre | The large majority of laptops and many slim external keyboards |
| Butterfly | A single, very thin hinge that folds in the middle like wings | Some Apple laptops from roughly 2015 to 2019 |
| Stabilizer bar | A thin metal wire under the keycap, clipped into small hooks | Space bar, Shift, Enter, Backspace on most keyboards |

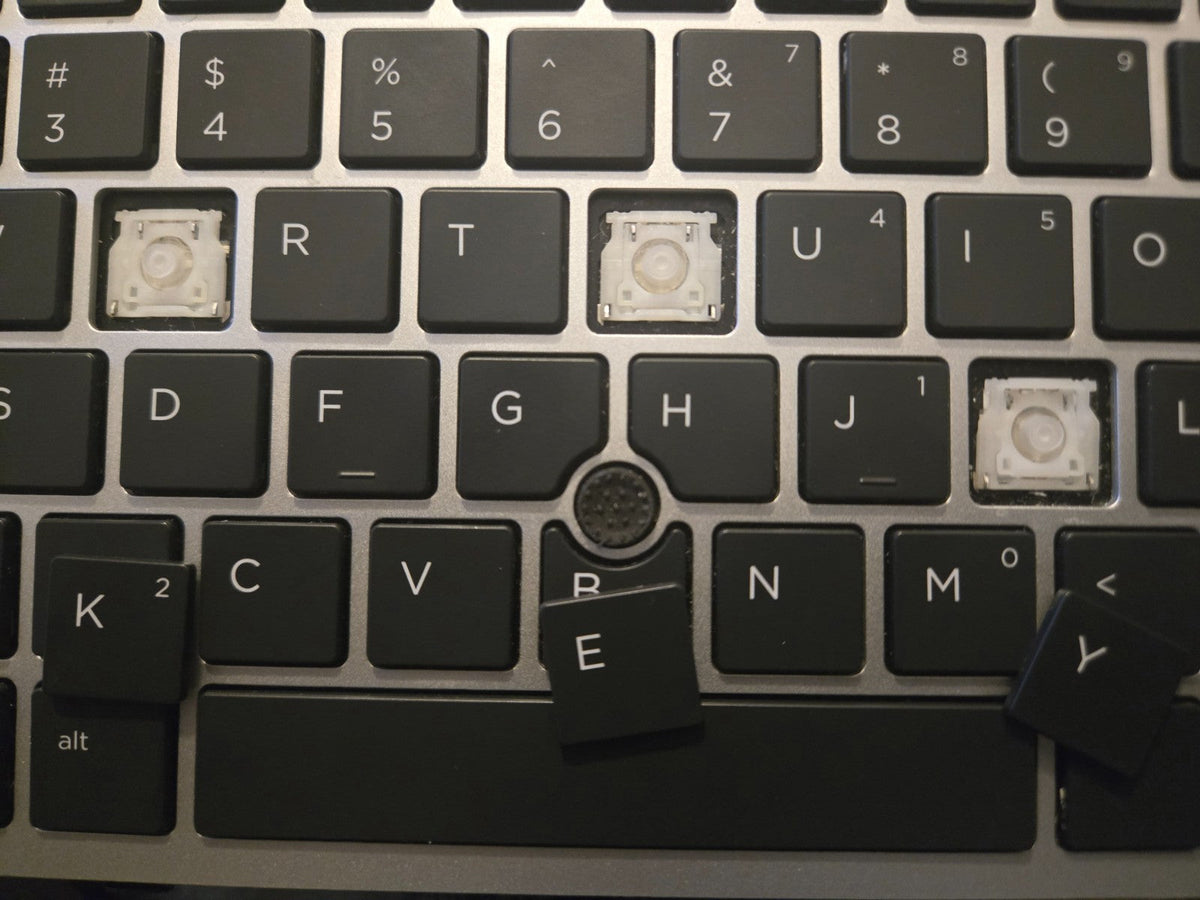

How a scissor hinge works
A scissor hinge has an inner frame and an outer frame, joined at a pivot in the middle. The bottom of the hinge clips into small metal or plastic hooks on the keyboard base plate. The keycap then clips onto the top of the hinge, usually with two fixed clips on one edge and two sliding clips on the other.
Because every keyboard design positions those hooks differently, hinges vary in width, height and clip spacing. Two hinges that look alike can differ by a fraction of a millimetre, which is enough to stop one locking.
How to tell which hinge you have
- Look under a neighbouring key. Gently lift one corner of an unbroken key nearby with a fingernail or plastic pick, just far enough to see the hinge. Don't remove it fully.
- Check the shape. X-shaped frames mean scissor. A single thin folding piece means butterfly.
- Note the clip positions on the keycap underside. Photograph them against a ruler.
- Find your keyboard identification. Laptop model, and where possible the keyboard part label on the back of the keyboard, narrow down which hinge design you have. Our replacement key buying guide shows where to look.
Refitting a scissor hinge
- Check the hinge is intact. Look for cracked arms or a broken pivot. A cracked hinge won't hold and needs replacing.
- Assemble the two frames if they have separated. The inner frame snaps into the outer at the pivot pins.
- Orient it correctly. Compare with a neighbouring key: which side has the hooks, and which way the frames cross.
- Clip the hinge to the base. Slide one side under its hooks first, then press the other side down until it clicks. It should pivot freely.
- Fit the keycap. Hook the fixed-clip edge first, then press the other edge down gently until it clicks.
- Test. The key should press evenly across its whole surface and spring back.
Work slowly. The hooks on the base plate are thin and can bend or snap, and they are not easy to repair.
Long keys and stabilizer bars
- Clip the stabilizer wire into the keycap's small hooks first.
- Line the wire ends up with their retainers on the keyboard base, then press the keycap down so the hinge and wire seat together.
- If the key feels uneven or sticks at one end, the wire is out of its retainer. Lift and reseat it.
Butterfly keys
Butterfly mechanisms are thinner and more fragile than scissor hinges. Keycaps attach to the hinge with very small clips, and the hinge itself is easy to damage. Lift keycaps from the bottom edge with gentle, even pressure. Debris under butterfly keys is a common cause of sticking, so a gentle blast of compressed air is worth trying before you remove anything.
Ordering a replacement key and hinge
Our replacement keys come with a hinge clip, and listings are organised by keyboard. Compare the hinge photo and clip positions in the listing with the one under your neighbouring key before ordering. Browse the keyboard key replacement collection. If you're also replacing screws on the same repair, see laptop internal screws.
Removing a key without breaking the hinge
If you need to lift a working key, for cleaning or to look at its hinge, lift from the edge with the sliding clips. On most laptops that is the top edge, but check a neighbouring key first. Raise it a millimetre or two with a plastic pick, then lift evenly. Prying from the fixed-clip edge is the most common way hinges get snapped.
FAQ
Are laptop key hinges universal?
No. Size, shape and clip positions vary between keyboard designs, even within one brand.
Can I put a key back on without the hinge?
No. The keycap clips onto the hinge, and the hinge clips onto the base. Without it, the key won't stay on or press evenly.
My hinge came off in two pieces. Is it broken?
Not necessarily. Scissor hinges are two frames that snap together at a pivot. If neither frame is cracked, reassemble it.
Why does my key only work when I press the middle?
The hinge is probably unclipped on one side, or cracked. Refit or replace it.
